Mini MacCracker’s

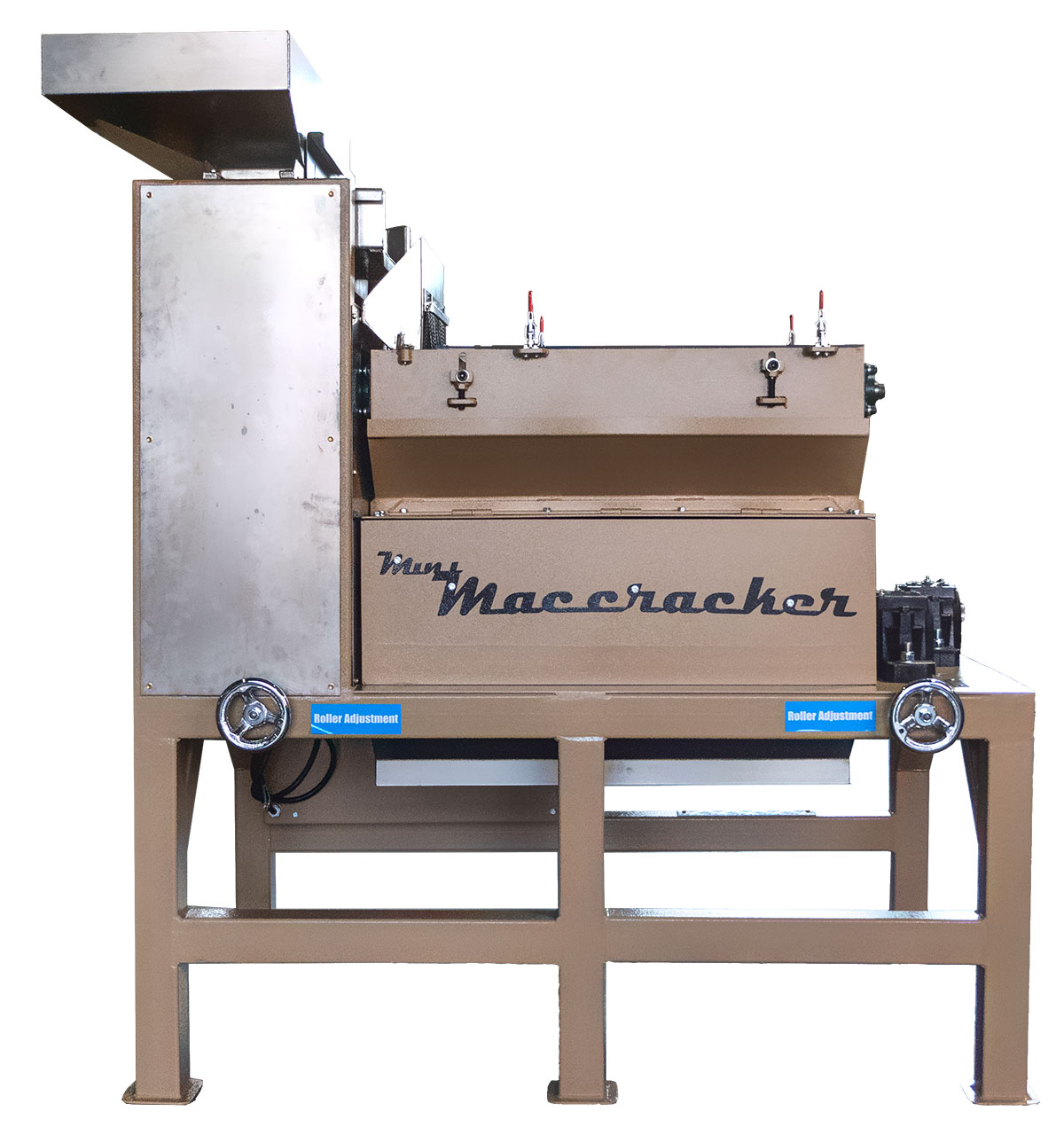

The Mini MacCracker’s (BABY MACMARTINS) was manufactured specifically as a cracker to assist the MACMARTINS to crack Macadamias smaller than 14mm (non cracks).
The Mini MacCracker’s (BABY MACMARTIN) is capable of cracking +/- 500kgs per hour, thus making it an ideal cracker for a smaller factory.
Depending on the variety of macadamia that needs to be cracked and speed of VSD.
The cracker is designed to have minimum maintenance requirements and is manufactured of heavy-duty powder coated mild steel.
All chutes and feeder pans are made of 2mm stainless steel (304).
All moving parts and vibrator feeder are fully enclosed within a stainless-steel enclosure.
The Cracker is equipped with a built-in sizer and is covered with “Lexan” sheeting.
The sheeting is easily removed for cleaning.
The Sizer and vibrator pan is fully adjustable by means of variable speed drives.

Built-in Sizer
The built-in sizer is very versatile if you adjust both sides to the smallest it can crack small side 12mm and large side 16mm.
But when it is adjusted to the maximum, the smallest it can crack
small side 13mm and large side 32mm.

Adjusting the sizer is very simple by just adjusting setting bolts for the sizer.

We recommend sizer size of 13mm to 28mm.

If smaller or bigger sizer is required, please advise beforehand and sizer can be manufactured to customer requirements.

Dryness of Nuts
Recommended moisture content for cracking is less than 3%.

1. Isolator
2. D.O.L starter for rollers
3. V.S.D. starter for the sizer
4. V.S.D starter for the feed pan
5. Stop/start buttons for manual operation and
6. Selector switch for sequence star
7. Run Trip lights for indication

MINI MACCRACKER SPECIFICATIONS:
Voltage – 380 Volts
Current – +/- 8 Amp on full load
Power – 4 Kw
Speed – Variable speed can be adjusted with VSD
Functions – Crack macadamia nut in shell
Operation – 3 Phases electrical supply
Per Batch – +/- 500 kg per hour (depending on VSD speed)
Levelling – Supplied with feet
Safety – Safety signs on machine, refer to manual for usage safety
Weight – +/- 1300kg
Dimensions (Uncrated):
Length – 1500 mm
Width – 1000 mm
Height – 1800 mm

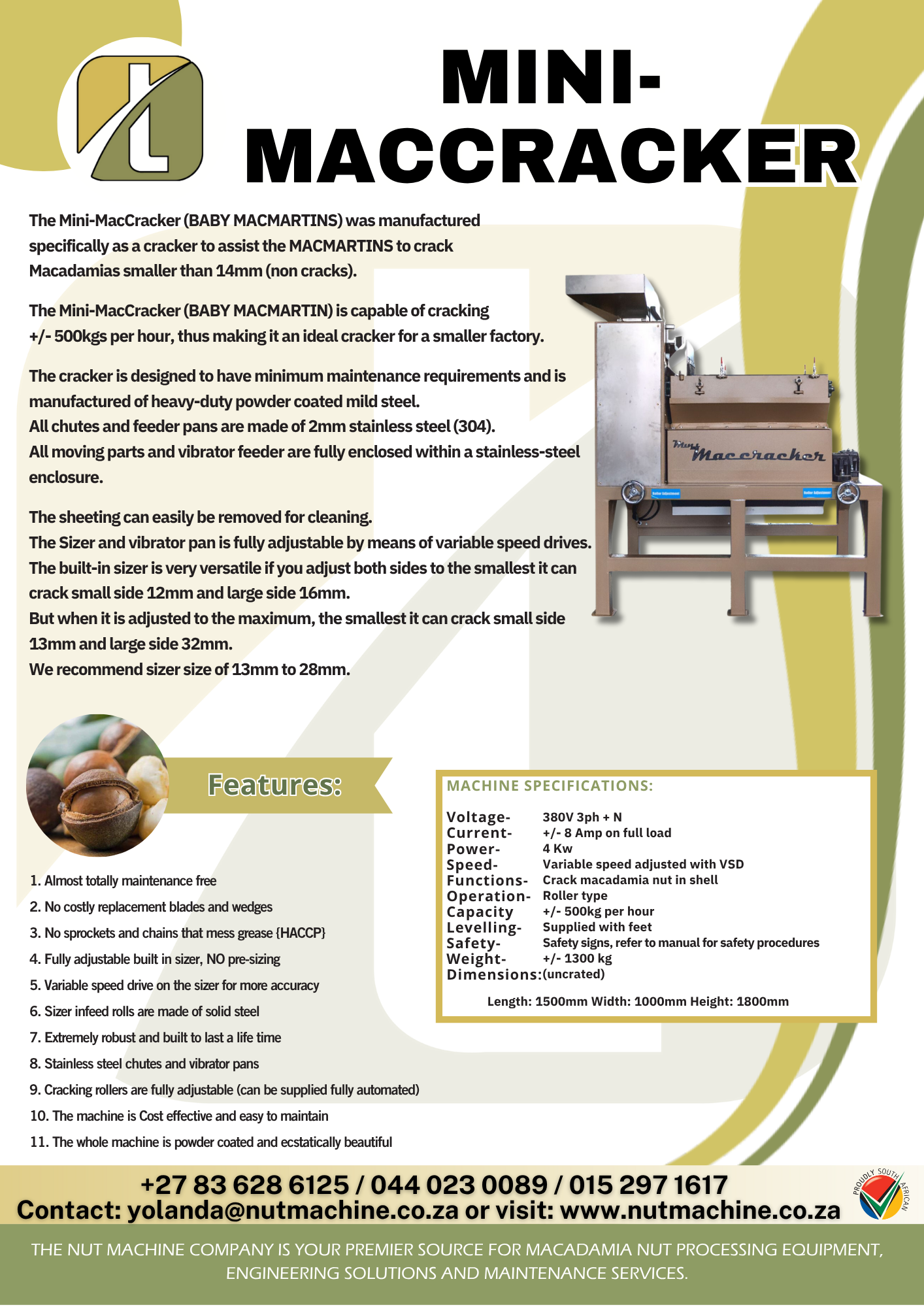

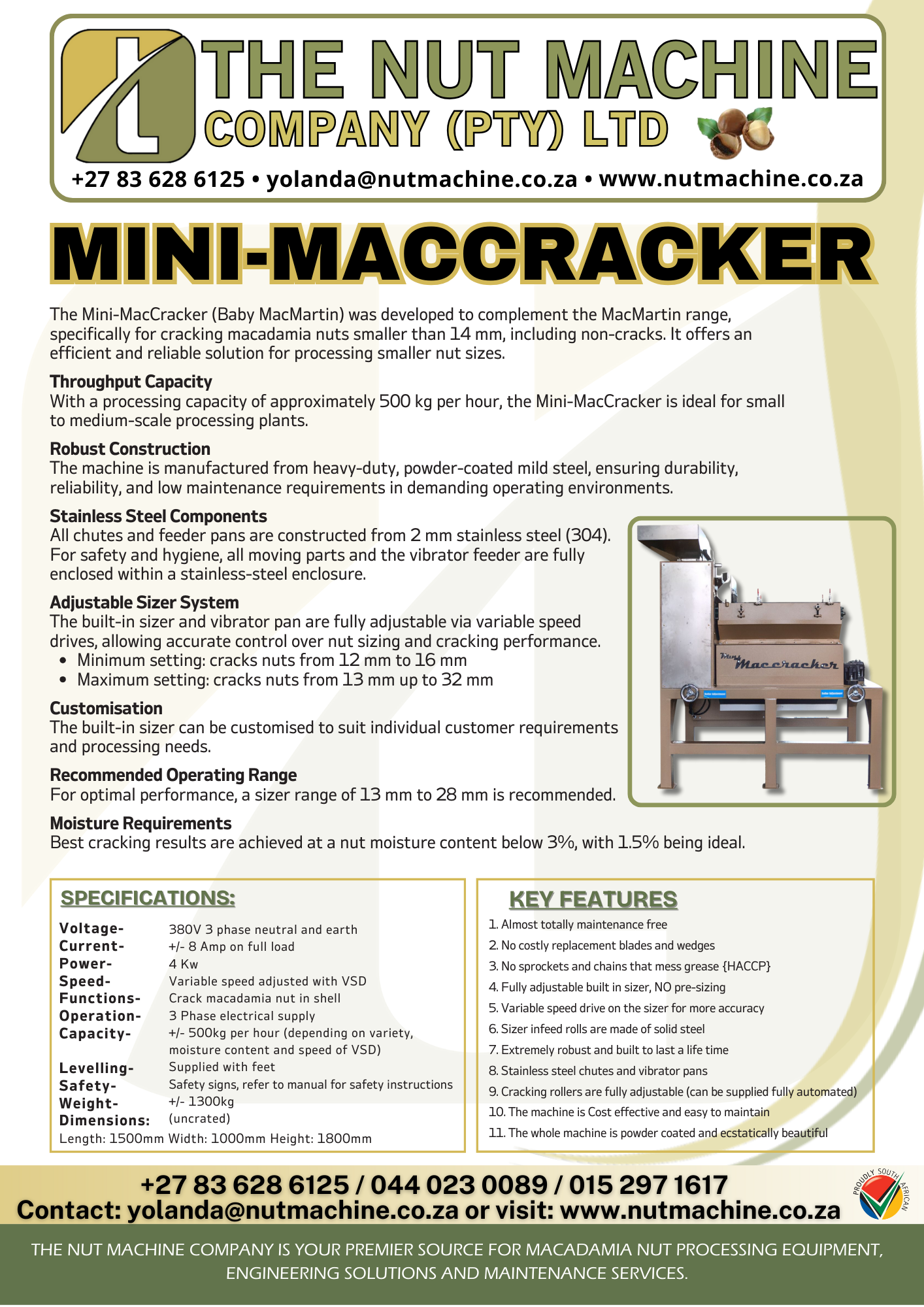

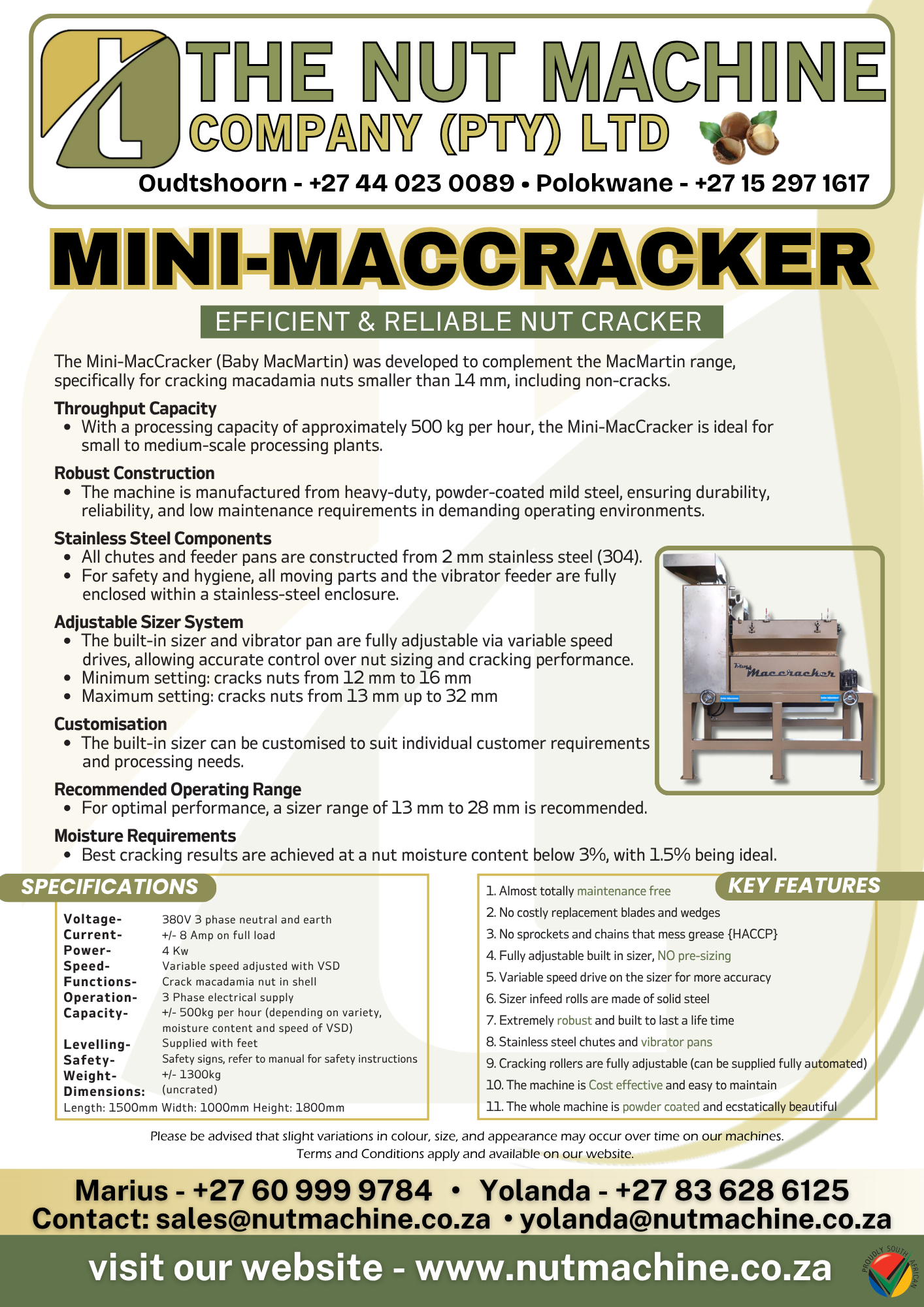

FACT SHEETS

*Capacity of machines may vary due to variety, quality, moisture content, feeding option used to inlet nuts, debris processed with nuts and style of nuts cracked/processed.

*Pre-Check and clean all machinery and conveyors before use and at regular intervals and ensure regular maintenance.

*No machines are guaranteed if foreign particles are processed with the nuts i.e., stones, sticks, bolts, nuts etc. (It remains the customers responsibility to make sure the nuts are clean)
