MacTumbler

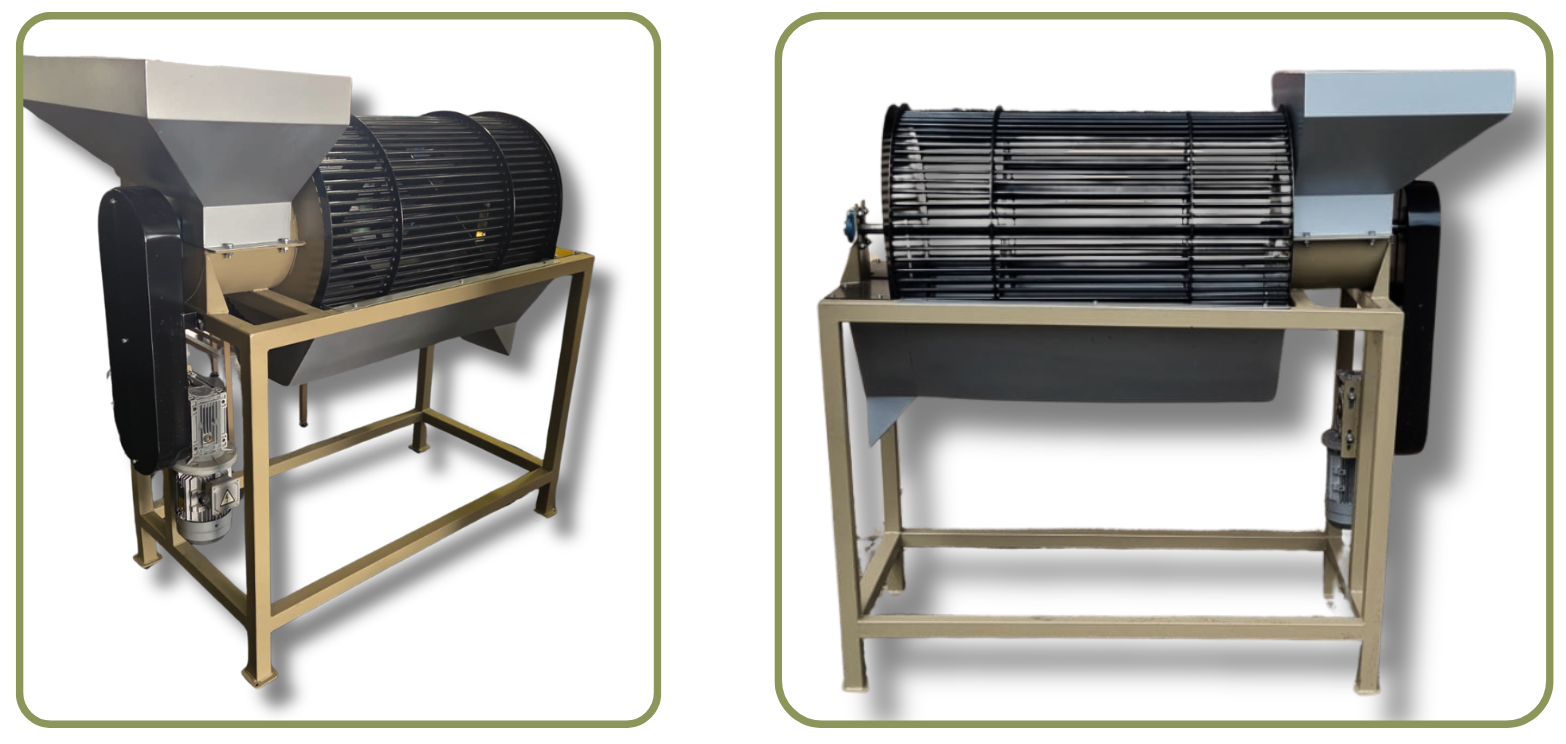

The MacTumbler is available in various sizes, depending on the capacity requirements of your dehusking plant. It is specifically designed to work in combination with the

DeHusker-2 in our range.

The main purpose of the MacTumbler is to remove husk, dirty particles, and undersized nuts below 13 mm NIS.

Construction & Design

  • The MacTumbler is manufactured from durable mild steel and finished with a protective painted coating for long-lasting performance.
  • The standard MacTumbler drum size is 600 mm x 2 meter.

Electrical & Speed Control

  • The MacTumbler comes standard with a DOL starter, while a VSD (Variable Speed Drive) is available as an optional extra.
  • The size and operating speed of the tumbler depend on the capacity of your plant and can be customized accordingly.
  • A variable speed drive can also be supplied for improved control and efficiency.

Feeding & Discharge System

  • Each tumbler is fitted with an outlet chute designed to feed directly into the debris conveyor system.

An optional outlet conveyor can also be supplied to transport debris and undersized nuts to a bin or trailer located outside the building.

MACTUMBLER SPECIFICATIONS ON THE 2M DRUM

Voltage –       380V
Current –      4.8 Amp on full load
Speed –         72 Rpm (VSD optional)
Function –    Removing husk, leaves, stick and undersized nuts
Operation –  Tumbling of the product
Safety –         Refer to manual or signage on machine
Weight –       +/- 380 kg

Levelling –    Supplied with levelling feet

Dimensions (Uncrated):
Length –   1700 mm
Width –    750 mm
Height –   1640 mm

*Please contact us for your official quotation

1M DRUM

FEATURES:

  • Mild Steel
  • Comes with a standard DOL starter
  • Aesthetically appealing, but well priced

*Capacity of machines may vary due to variety, quality, moisture content, feeding option used to inlet nuts, debris processed with nuts and style of nuts cracked/processed.

*Pre-Check and clean all machinery and conveyors before use and at regular intervals and ensure regular maintenance.

*No machines are guaranteed if foreign particles are processed with the nuts i.e., stones, sticks, bolts, nuts etc. (It remains the customers responsibility to make sure the nuts are clean)
